Name
|
Detail
|
|

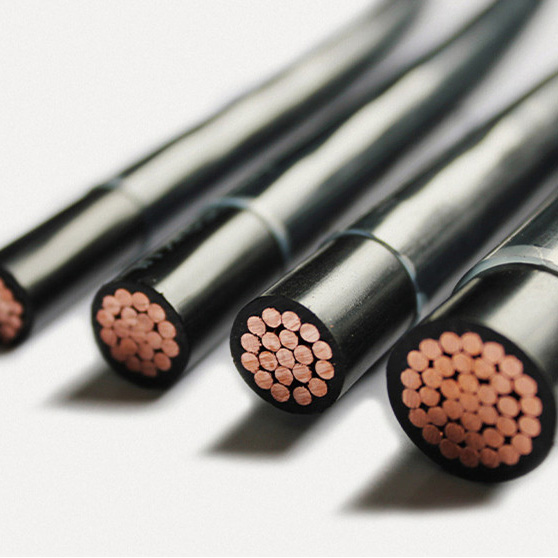

Building Wire
|

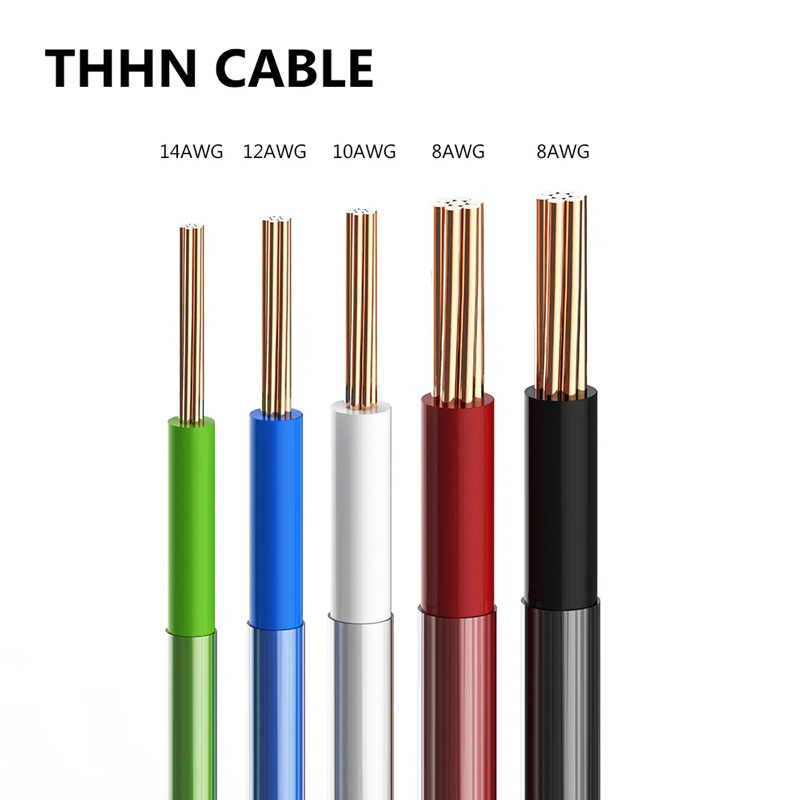

Certified Products: THHN, THWN, THHW, TWU, TWN75, TW75, TWU75, T90 Nylon, etc.
Standards: UL 83, CSA C22.2 No. 75
Rated Voltage: 450/750V to 600V
Temperature Range: Up to 90°C in dry environments, 75°C in wet environments
Features:
Nylon sheath provides excellent electrical and physical properties
Heat resistance, oil resistance, and self-lubricating characteristics
Small outer diameter, light weight, low static friction coefficient
UL1581 VW-1 flame retardant certification
|
|
Tray Cable
|
Certified Products: TC, TC-ER, CIC, CIC-TC, CIC-TC-ER, etc.
Standards: UL 1277, CSA C22.2 No. 230 & 239
Rated Voltage: UL (AWM) AC 600V; UL (WTTC) AC 1000V
Temperature Range: Moving installation -5°C to +90°C; Fixed installation -40°C to +90°C
Features:
Oil resistance, UV radiation resistance
Suitable for outdoor and direct burial environments
Flame retardancy complies with CSA FT4 standard
Minimum bending radius: 10x outer diameter for moving installation, 4x outer diameter for fixed installation
|
|
Portable Cordage
|
Certified Products: S, SO, SOO, SOOW, SJ, SJO, SJOO, SJOW, SJOOW
Standards: UL 62, CSA C22.2 No. 49
Features:
Excellent flexibility and bending resistance
Oil resistance, weather resistance, mechanical damage resistance
Suitable for industrial equipment, tools, and temporary power connections
|
|
Appliance Wiring Material
|
Certified Products: 1015, 10269, 2587, 2464, 20886
Standards: UL 758
Features:
Used for internal wiring of equipment and component connections
Stable dimensions, reliable electrical performance
Meets temperature and environmental requirements for specific equipment
|
|
XHHW, RHH/RHW Series
|
Certified Products: XHHW, RHH, RHW, RHW-2, SIS, R90, RW75, RW90
Standards: UL 44, CSA C22.2 No. 38
Features:
Cross-linked polyethylene insulation provides excellent thermal stability
Moisture resistance, chemical corrosion resistance
Suitable for building wiring in dry and wet environments
|
|
Other Special Cables
|
Certified Products: WTTC, MTW, 5-46KV shielded power cables
Standards: UL 2277, UL 1063, CSA C68.10
Features:
Machine Tool Wire (MTW) complies with UL1063 standard
Oil resistance, coolant resistance
Suitable for industrial machinery and automation equipment
|
|
Certification and Compliance
|
All products are certified by UL, CSA and other international certifications
Complies with National Electrical Code (NEC) requirements
Some products meet CCC certification requirements for flame retardant cables (mandatory from July 1, 2025)
|
